The pneumatic connector is an integral part of any compressed-air/pneumatic setup as it is responsible for providing safe, secure and leak-proof connections through which pressure transfers occur between hoses/tubing/pipes and pneumatic equipment. The selection of the appropriate pneumatic connectors will allow for efficient, safe and durable operation of the compressed air system regardless of how compressed air is used to power actuators/valves or air tools.
What is A Pneumatic Connector?
The pneumatic connector is a device that mechanically connects two or more elements of a pneumatic circuit. A typical pneumatic connector would link an air supply line to a hose and/or a tube to a pneumatic actuator or valve. Pneumatic connectors create tight seals enabling compressed air to flow freely and reliably without any potential for leakage thus ensuring adequate pressure in the system and providing consistent performance in all areas of operation. When a pneumatic connector provides secure junctions between pneumatic circuitry components, the connector also provides a means for maintaining pressure integrity in the pneumatic circuit, thereby ensuring that the entire pneumatic system functions effectively.
Common Types of Pneumatic Connectors
- For various applications, there are many different types of pneumatic connectors available today. The various connectors come in different shapes and have different benefits that help the customer determine which connector will best fit their needs.

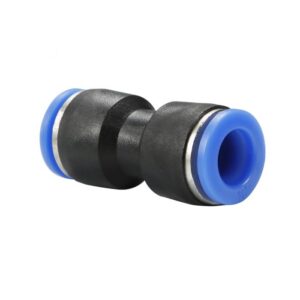

- There are also push-in/push-to-connect pneumatic fittings, which are one of the most common types of connectors. These connectors can be pushed into place, allowing for an instant lock without requiring any tools to install; therefore, they are quick and easy to install/maintain. This type of connector is ideal for applications in which disconnection/reconfiguration will occur often.
- Threaded fittings create a very strong seal by using screw-type connections (e.g., BSP, NPT or metric threads). Because of this ability to create such tight seals, threaded fittings are commonly used in higher pressure and/or semi-permanent systems.
- Compression fittings use compression nuts and ferrules to connect rigid tubing (such as copper and/or metal tubing) to form a sealed (non-soldered and/or flared) joint. They are used in applications that require a strong and permanent seal.
- Barbed fittings come with ridged end which grip the inner surface of flexible tubing and are secured to the tubing with a hose clamp in many cases. Barbed fittings are typically used in systems where low-pressure flow is required and where flexibility is required.

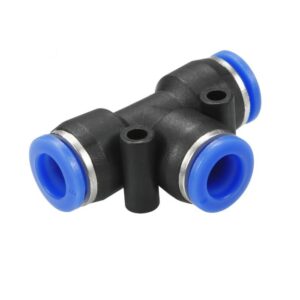

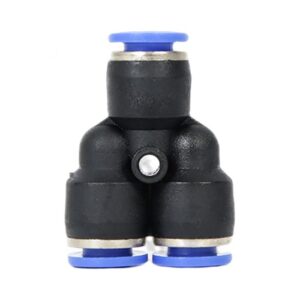

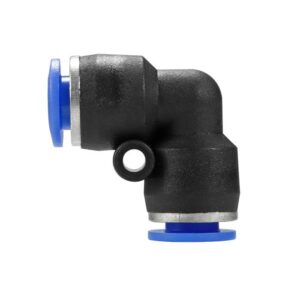

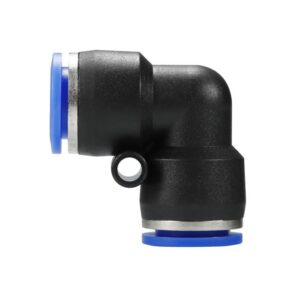

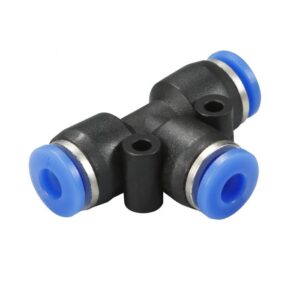

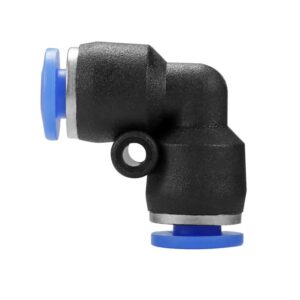

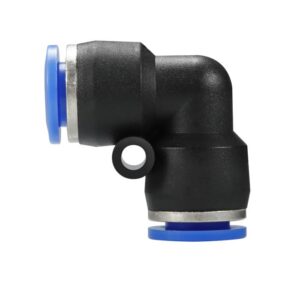

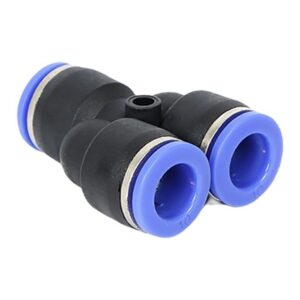

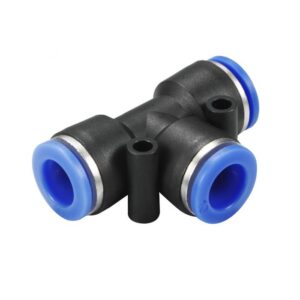

- Directional and branch connectors (such as T configurations, elbow configurations, and reducer configurations) are commonly used in pneumatic applications to change or redirect airflow and to divide airflow into multiple pathways. These connectors have significant flexibility in the configuration of pneumatic circuits, as well as provide efficient routing of airflow within the system.
Each of the types has their own specific advantages and ideal application conditions based upon the pressure and tubing type used, as well as installation requirements.
Understanding Why Pneumatic Connectors are Important: Benefits and Ways to Use Them
Investing in quality pneumatic connectors can offer many benefits to how well your pneumatic systems run.
- Reliability and Safety: The seal on a properly installed connector stops air from leaking; this prevents the risk of loss of system pressure, unintentional disconnections, and poor air flow. All are critical to safely using pneumatic tools; actuators; and machines; and other automated machines.
- Efficient and Maintainable Operations: A quick connect or push-in pneumatic connector allows installation and maintenance to take place much quicker than traditional methods. Therefore, a company can set up their systems for the minimum amount of time in between operations to reduce down-time, thus saving on labour costs.
- Flexibility and Versatility: The numerous options and configurations of different types of pneumatic connectors and materials allow the fabrication of pneumatic system configurations suitable for all different types of industries.
- Cost-Effectiveness: Pneumatic systems with high-quality connectors will require less frequent replacements of connectors; the quick disconnect or push-in types of connectors have a lower labour requirement which can save substantial amounts of money on future maintenance.
- Common places where pneumatic connectors are prevalent include: Industrial Automation Lines, Pneumatic Tools, Compressors and Air Supply Systems, Packaging Machines, Robotics, Manufacturing Equipment and Various Maintenance and Workshop Setups.
Best Practices in Selecting the Right Pneumatic Connector
When selecting a pneumatic connector for your application:
- Match the connector type with the kind of tubing, whether it is flexible hose or rigid tube; also match connector type to the required pressure, as well as the frequency of connection or change-out.
- When using threaded fittings, ensure thread standards are compatible (e.g., BSP, NPT or metric); mixing thread standards may cause poor seal or incompatibility.
- Select the most appropriate connector material for the type of environmental conditions the connector will experience; for example, use stainless steel in corrosive/humid conditions; use plastic for low pressure/lightweight applications; use brass for general industrial use.
- Evaluate ease of installation, maintenance, and long-term dependability; for installations requiring frequent change-outs, push-in or quick-disconnect connectors will usually provide the best combination of usability and performance.
Knowing about the complete range of pneumatic connectors, including their types, materials, functions and uses, will help you make an informed decision when selecting a connector to improve the reliability, safety and efficiency of your compressed air/pneumatic systems. Selecting high-quality pneumatic connectors specifically designed to fit your needs ensures that your equipment will operate at optimal performance with minimal downtime and maintenance costs.
