IP65 Junction Boxes

Why Choose an IP65 Junction Box

With both indoor and outdoor applications, IP65 junction boxes are very durable, and capable of safeguarding and protecting electrical connections. The designation “IP” stands for “Ingress Protection”, with the two numerals referring specifically to the levels of protection provided against solid and liquid contaminants.
Specifically: the first numeral “6” is the highest level of protection given against solids – this means that an IP65 enclosure is completely “dust-proof” and therefore does not allow dust/dirt or other particulate matter into the enclosure.
The second numeral “5” provides protection against low-pressure water jetting in any direction, making these enclosures appropriate for use during light rain, cleaning with hoses, and for incidental splashes.
Due to these capabilities, IP65-rated junction boxes are commonly used wherever wire connections could be exposed to dust, moisture, and other environmental factors.

Typical Materials and Build Quality

There are a number of materials available for junction boxes, all of which have characteristics that create a good fit for different environments. Here is an overview of the types of materials:

1. ABS or Polycarbonate (PC) Plastic: Both of these materials are ideal for light and medium-duty applications, as they are light-weight, cost-effective and UV-stabilized for outdoor use.
2. Fibreglass-Reinforced Plastic/Metal (e.g. Stainless Steel): This type of box is used in environments requiring either high mechanical strength, chemical resistance of the protective enclosure against corrosive chemicals, or long-lasting durability in very harsh or aggressive weather conditions.

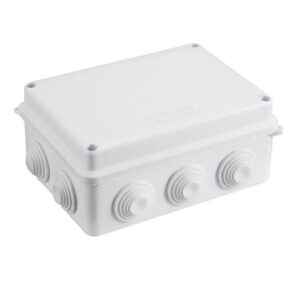

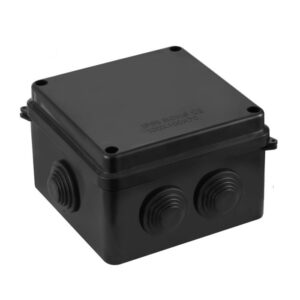

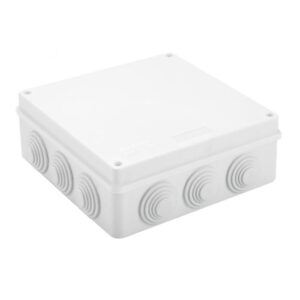

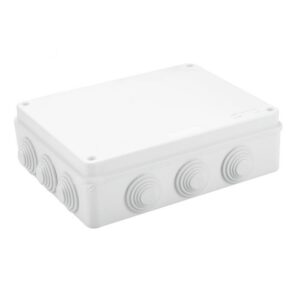

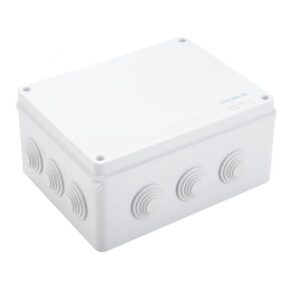

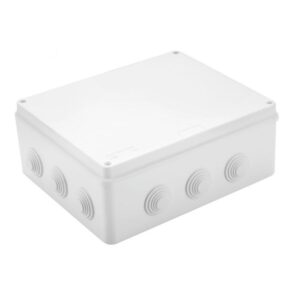

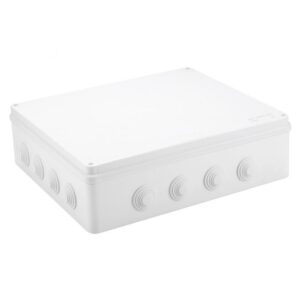

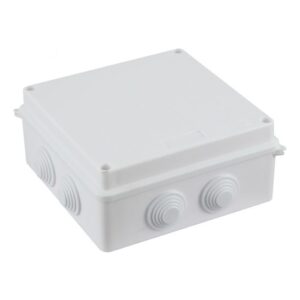

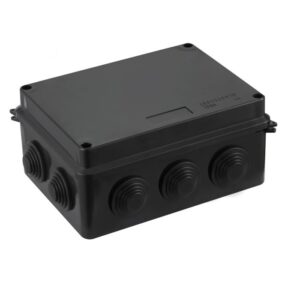

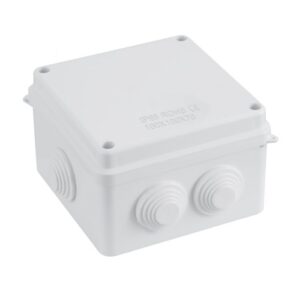

3. Most of the junction boxes on the market today come equipped with a cover and/or lid that uses a gasket along the lid-to-box seal as well as either knock-out holes or pre-drilled entry for connecting cables from the box. Each has adequate internal room for wiring, junctions or terminals that extend from the box. To guarantee the best possible performance from each of these boxes, it is essential that any cables connected to the boxes have their cable entry points sealed correctly at the top or through installed cable glands; otherwise the waterproofing performance will not function as designed. Additionally, unused knock-out entries need to be closed; otherwise, the integrity of the box will be diminished and will affect the box’s overall IP65 waterproof rating.

Where IP65 Junction Boxes Are Used

Because of their dust-tight and water-jet resistant properties, IP65 junction boxes are suitable for a wide range of applications:

• Garden Lights And Outdoor Lighting – Generally Used For Outdoor Decor Lighting, Pathway Lighting, Sensors and Holiday Lights
• All External Wall Electrical Outlets For Homes And Businesses/Commercial Settings, Where All Wires Are Exposed To Environmental Elements.
• Shop, Garage & Industrial Locations – To Keep Wires Protected From Dust (sawdust) And Other Foreign Materials And moisture
• Photovoltaic Solar, Telecommunications, And Sensor Wiring Installations – Perfect For Combining String Boxes, Charging Stations, Junction Boxes, And Wiring/Control Enclosures; These Wiring Installations Are Common In Some Very “Rugged” Conditions (i.e., Solar Farms, Remote Sites, Etc.)

In General, IP65 Enclosures Should Be Used In Any Application Where Cable Wiring, Termination (ending), Or Junctions Are Exposed To Dust, Rain, And Water Spills Or Are Occasionally Submerged IN Water (But Not Full Submersion), For Long-term Protection From The Elements

Installation Best Practices for Maintaining IP65 Protection

Using an IP65 junction box provides excellent protection — but only when installed correctly. Here are some important best practices:

1. Using Cable Glands and Rubber Plugs.

Use an appropriately rated cable gland or a rubber plug for each cable entry at all times. Avoid “ad-hoc” methods of providing a cable entry to the box (by drilling a hole through the bottom), unless approved.

2. Properly Seal the Box Cover.

Ensure that the porous surface of any gasket is flat and that you have tightened your screws evenly to provide a good seal to the environment.

3. Mounting the Box for Outdoor Installation.

When you mount the box for outside installation, mount it vertically so that rainwater runs off the lid. Don’t mount it where water could pool beneath it (under the box) or around the cable entries; this will help maintain the seal.

4. Re-Seal Gland Entries.

When you add, remove or change any cables, re-seal the cable glands with a new sealing kit or tape to ensure that the seal retains its quality. Leaving unused knock-outs opened or not sealing correctly will reduce the effectiveness of the sealing system for moisture.

5. If an IP65 Box is not Sealed Correctly, it Will Fail.

If you do not install your cable glands/glands correctly and seal them properly, even though the box is of high quality (IP65), you will not receive the performance of the box as specified in the manufacturer’s ratings.

Advantages & Limitations: What to Keep in Mind

• Dependable protection from dust and water ingress ensures junctions remain within the junction box dry, clean, and fully functional in both dusty and moist outdoor conditions.
• Variety of material selections allows customers to choose between various types of plastic as well as metal that fit their needs with respect to durability, ultraviolet (UV) light stability, corrosion resistance, and cost.
• Flexibility across a wide range of applications from small home lighting fixtures to large commercial/institutional solar photovoltaic installations.
• Simple installation and easy maintenance access to the inside of the junction box via removable covers or lids, allowing easy access to maintain, inspect, and replace wiring as needed.

Conclusion:

IP65 Junction Boxes for Reliable, Weather-Resistant Installations
A reliable solution for electrical installations that have wiring and electrical connections subject to dust exposure and/or rain/water exposure (rain and spray) has been available in the form of an IP65-rated Junction Box, suitable for applications such as home gardens, the exterior of buildings, workshops, and industrial environments.

To provide electrical installations with the greatest level of protection and safety for the wiring, and for the owner to have peace of mind knowing that their electrical installation will remain safe and continue to operate, an IP65 Junction Box must be selected to meet the application requirements and installed properly using sealed cable glands and a securely fitted lid.

Selecting IP65-rated Junction Boxes for your electrical cable requirements ensures maximum durability, that the installation will meet current codes, that the installation will be reliable outdoors (in the elements) or in the presence of water spray. Whether the installation is garden lamps, outdoor outlets, or outdoor motion detectors, there is an appropriate configuration of an IP65 Junction Box available for the installation to provide safety and longevity.
